GameScene Class Reference

The scene (CCLayer) where the game takes place. More...

#import <GameScene.h>

Inherits PauseDelegateProtocol-p.

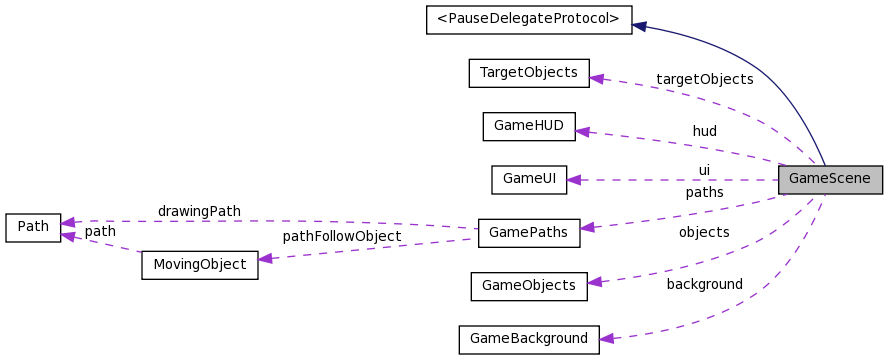

Collaboration diagram for GameScene:

List of all members.

Public Member Functions
(id)	- init
	should not be called by you - use [GameScene scene] instead!
(bool)	- isPlaying
	returns true if the game is running, false if it is paused either because of the pause menu being shown or the game being over
(void)	- onPauseGame
	pauses the game, also called when AppDelegate receives incoming call etc.
(void)	- onResumeGame
	resumes the game when it is paused, otherwise does nothing
(void)	- onCrash
	pauses the scene for a moment, then resets
(void)	- dealloc [implementation]
(void)	- registerWithTouchDispatcher [implementation]
	We want to use a targeted touch dispatcher because then we don't need to deal with the user drawing a path and moving over a UI button by accident.
(BOOL)	- ccTouchBegan:withEvent: [implementation]
(void)	- ccTouchMoved:withEvent: [implementation]
(void)	- ccTouchEnded:withEvent: [implementation]
(void)	- ccTouchCancelled:withEvent: [implementation]
(void)	- setIsPlaying: [implementation]
(void)	- setIsPaused: [implementation]
(void)	- onCrashTimeOut: [implementation]
(void)	- onPauseButton:
Static Public Member Functions
(id)	+ scene
	creates the scene, returns an autoreleased object
(GameScene *)	+ instance
	instance of GameScene, only valid as long as the scene is running (caution: it's not a proper Singleton!).
Protected Attributes
GameBackground *	background
GameHUD *	hud
GamePaths *	paths
GameObjects *	objects
TargetObjects *	targetObjects
GameUI *	ui
Properties
unsigned int	currentScore

---

Detailed Description

The scene (CCLayer) where the game takes place.

It contains all game objects, paths as well as HUD and GUI.

---

Member Function Documentation

- (BOOL) ccTouchBegan:		(UITouch*)	touch
withEvent:		(UIEvent*)	event
				[implementation]

- (void) ccTouchCancelled:		(UITouch*)	touch
withEvent:		(UIEvent*)	event
				[implementation]

- (void) ccTouchEnded:		(UITouch*)	touch
withEvent:		(UIEvent*)	event
				[implementation]

- (void) ccTouchMoved:		(UITouch*)	touch
withEvent:		(UIEvent*)	event
				[implementation]

- (void) dealloc

[implementation]

- (id) init

should not be called by you - use [GameScene scene] instead!

+ (GameScene *) instance

instance of GameScene, only valid as long as the scene is running (caution: it's not a proper Singleton!).

It's meant for quick access to it from child nodes.

- (bool) isPlaying

returns true if the game is running, false if it is paused either because of the pause menu being shown or the game being over

- (void) onCrash

pauses the scene for a moment, then resets

- (void) onCrashTimeOut:

(ccTime)

delta

[implementation]

- (void) onPauseButton:

(id)

sender

- (void) onPauseGame

pauses the game, also called when AppDelegate receives incoming call etc.

Reimplemented from <PauseDelegateProtocol>.

- (void) onResumeGame

resumes the game when it is paused, otherwise does nothing

- (void) registerWithTouchDispatcher

[implementation]

We want to use a targeted touch dispatcher because then we don't need to deal with the user drawing a path and moving over a UI button by accident.

Using a Targeted touch handler avoids the button being "touched" accidentally.

+ (id) scene

creates the scene, returns an autoreleased object

- (void) setIsPaused:

(bool)

isPaused

[implementation]

- (void) setIsPlaying:

(bool)

isPlaying

[implementation]

---

Member Data Documentation

- (GameBackground*) background [protected]

- (GameHUD*) hud [protected]

- (GameObjects*) objects [protected]

- (GamePaths*) paths [protected]

- (TargetObjects*) targetObjects [protected]

- (GameUI*) ui [protected]

---

Property Documentation

- (unsigned int) currentScore [read, write, assign]

---

The documentation for this class was generated from the following files:

• ClassesLineDrawingStarterkit/GameScene.h
• ClassesLineDrawingStarterkit/GameScene.m
